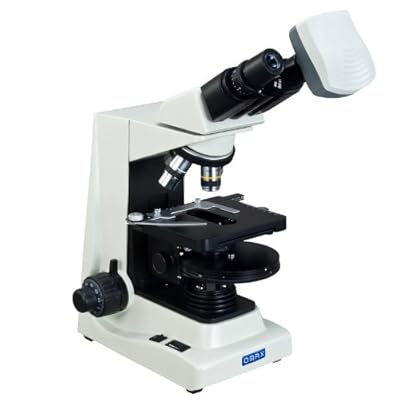

Best1 Model: M824PLAN-PHB1-C90 . Digital camera: - true color 3488 x 2616 pixels (9.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows 2000/XP/Vista/Windows 7 32/64-bit - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included . All metal mechanical components; Power supply: 110-115V, 50/60Hz (US and Canada) (220V version available, contact seller); Dimension of microscope: 14-1/8inch x 9-1/8inch x 16-1/2inch ( 36cm x 23cm x 42cm); Dimension of phase contrast kit: 12inch x 9inch x 5-11/16inch (30.5 cm x 23 cm x 14.5 cm); Shipping package: 31 lbs (14 kg) . Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-200X-320X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: PLAN 4X, 10X, 40X (spring),100X (spring,oil); Phase contrast objectives (in phase contrast kit): PLAN 10X, 20X, 40X (spring), 100X (spring, oil); Viewing head: binocular Siedentopf 30degrees;Inclined 360degrees;rotatable; Interpupillary distance: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece . Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm) translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying; Illumination: transmitted, 6V/20W halogen lamp, variable intensity; Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper to protect objectives and slides; Condenser: Abbe condenser NA1.25 with iris diaphragm and swing-in filter holder, rack and pinion adjustment; Phase contrast condenser disk with five switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X, each can be centered individually . review
Sale Price : $1,479.95
Last date: Wed, 12 Sep 2012 16:38:05 +0800
Technical Details Packing List: Binocular microscope Siedentopf viewing head;Microscope stand;4 PLAN objectives: 4X, 10X, 40X, 100X;A pair of eyepieces WF10X/18;A pair of eyepieces P16X;2 color filters: green and blue;1 bottle of immersion oil;Dust cover;Power cord (US and Canada standard);Extra halogen bulb (6V/20W);Extra fuses;Tension wrench;Allen key;1 centering telescopic eyepiece;4 PLAN phase contrast objectives: 10X, 20X, 40X, and 100X;1 condenser disk with bright field condenser and 4 phase contrast filters;1 green filter;1 screw driver;1 aluminum storage and carrying box;9.0MP digital camera;0.45X reduction lens;USB cable;1 CD (Camera driver, software and user's instruction)
See More Detail : Read More!
